Complete Guide about Hybrid Solar System

Are you living in a rural area or out of the city where there are mostly electric grid failures? Or are you facing an electricity outage when batteries are not fully charged, and solar panels are not working in cloudy weather?

A hybrid solar system is a combination of on-grid and off-grid solar systems and a prime solution for your electricity needs. It connects both Wapda and batteries and provides electricity during power outages.

This system is most efficient and cost effective and allows you to sell extra power to the utility grid by net metering in day time. And at night work on batteries during power outages.

How Does a Hybrid System Work? The working Principle of Hybrid Solar

The working method of hybrid solar is different in day and night time which is mentioned below.

Daytime Operation

Solar panels generate electricity in the daytime. Some power is used for home appliances, and extra energy is stored in the battery; if the battery is fully charged, it is then fed into the utility grid.

Nighttime Operation

On nights, the battery provides the required power for home appliances; if the battery goes down, then the system automatically switches to the grid and continues to supply.

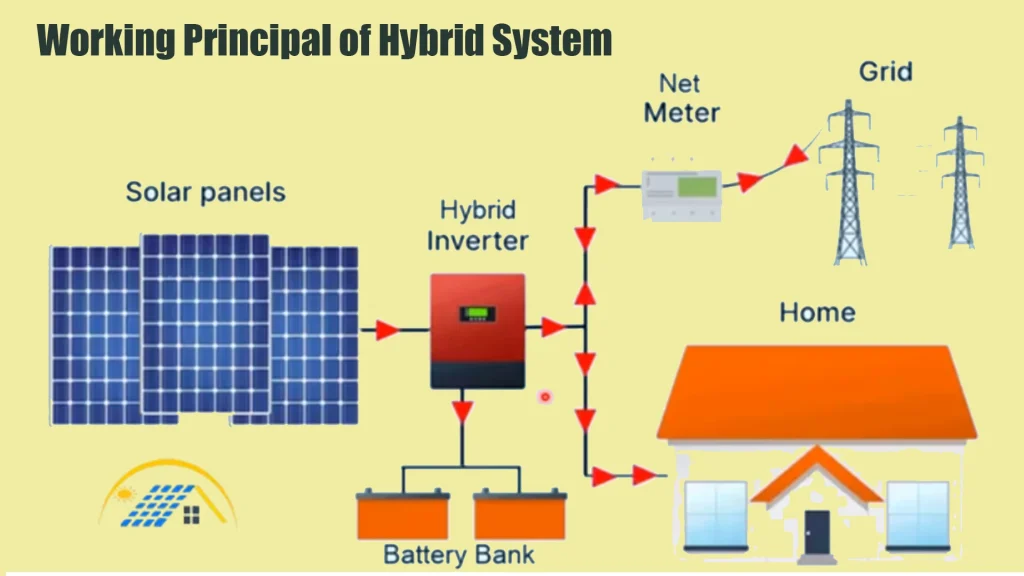

how does a hybrid system work. working principal of hybrid system

Installation and Setup of Hybrid Solar

Installing hybrid solar panels is more complex than other traditional setups. You must hire trained professionals to connect each device correctly.

Steps Involved In Installing A Hybrid Solar Power Plant

  • Calculate your energy usage
  • Choose Perfect location
  • All required components must transported to the location
  • Follow manufacturer safety guidelines.

Is It Possible to Install Hybrid Solar Panels Yourself?

Yes, you can do it yourself, but remember that DIY (Do It Yourself ) is complex because the system requires electrical and plumbing connections and proper structural integration.

Some manufacturers and installers give warranties for solar plates, which protect against problems or defects. To take benefit of these guarantees, you must hire a qualified professional for installation.

Where is it possible to install a hybrid solar panel?

You can install it in any good location.

What is Needed for a Hybrid System?

A good hybrid needs some main prominent parts to continue the electric supply

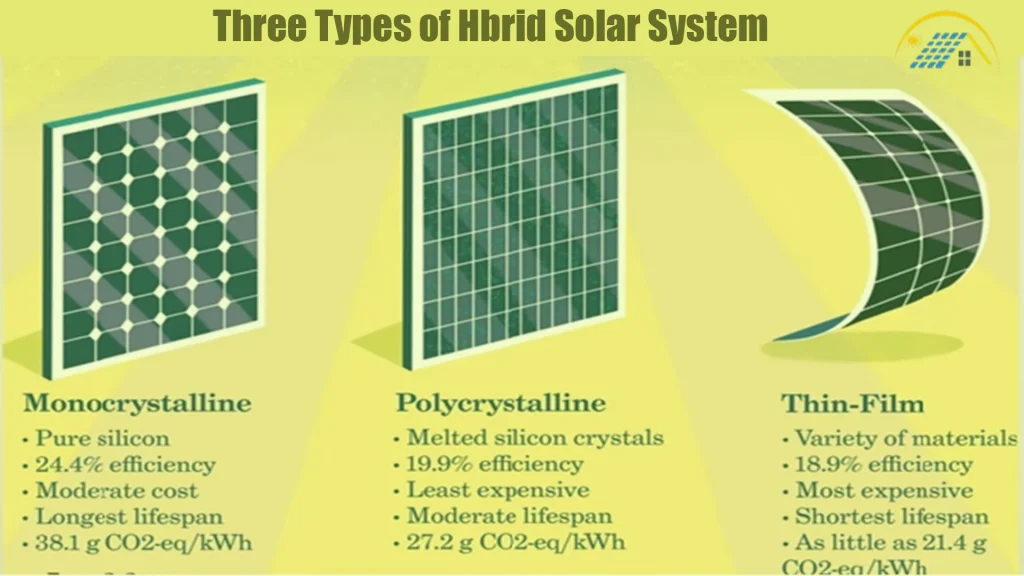

Types of Hybrid Solar Panels

Hybrid solar panels bring new panels depending on the latest technology.There are three types of hybrid panels available in the market. These are mentioned below:

Monocrystalline Hybrid Solar Panel

Monocrystalline panels cells made with pure crystal of silicon and have high rate ranging efficiency. It is also ideal for limited-space installation.  Produce high energy output between 16 to 24% efficiency in low light situations.

Pros

  • Space Saving
  • High Efficiency
  • Long Lifespan  25 years+
  • Higher Cost
  • Best Performance in low light Condition

Cons

  • Higher upfront costs and expensive from other type
  • Fragile during installation

Polycrystalline Hybrid Solar Panel

The polycrystalline system is made with multiple fragments of silicon melted together. Its crystalline purity is lower from other types. It is also less expensive and has 14 to 20% efficiency.

Pros

  • Low Cost
  • Less silicon waste
  • Easier installation
  • environmentally friendly choice

Cons

  • Lower efficiency
  • Less uniform
  • less space-efficient

Thin Film Solar Panel

This system is lightweight and flexible, converting light energy into a photovoltaic effect . and made with amorphous silicon and cadmium telluride . adaptable on various surfaces.

Pros

  • Lightweight and Installation Flexibility
  • Environmental Impact:

Cons

  • Low-efficiency Rate
  • Short Lifespan
Three Main Types of Hybrid System
Panel TypesEfficiencyCostLifespanInstallationProsCons
Monocrystalline16% to 24%High25 + YearsLimited Space NeedEfficiency high
Long Lifespan

Fragile. Most expensive
Polycrystalline14% to 20%Medium20 + YearsMore Space RequiredCost-effective, less wasteLower efficiency
Thin Film5% to 10%Low10-15 yearsFlexible to installLightweight
Lower efficiency,

The Future of Hybrid Solar Setup

Hybrid systems represent the future of the solar system, as the technology improves efficiency and accessibility.

Maintenance Tips for Hybrid Systems

The system requires regular maintenance to increase energy efficiency and save the Panel’s lifespan.

How Much Does a Hybrid System Cost?

Hybrid solar  is more expensive compared to on-grid,off-grid, and regular solar panels. However, they offer significant benefits such as lower electricity bills and continuous power supply. The system has no fixed price because it depends on various factors like quality of components, manufacturer , availability and other variables. Therefore, it’s important to consult with different suppliers before installation.

Comparison of Hybrid Systems vs. On-grid Systems vs. Off-grid Systems

Hybrid Systems:

Hybrid systems are highly popular and provide a great balance between on-grid and off-grid systems. They are connected to your local utility’s power grid. In the daytime, the panel generates more electricity from home usage and sends extra energy to the grid.  This helps you earn bill credits to offset future electricity costs and provide the best value.

On-grid System:

An on-grid system connected to the utility grid provides power to the house and sends the unused power to the grid. It’s commonly used for residential and commercial purposes. This system does not require any additional batteries for power storage.

Off-grid System:

Off-grid systems are standalone energy solutions that don’t rely on the electricity grid. Off-grid systems are best for rural areas, where electricity is not available or not working properly.

Are Hybrid Solar Panels Reliable?

They are highly reliable because the system uses grid electricity and battery backups. The hybrid inverter is a most powerful device that can manage performance by controlling both your solar panels and storage at the same time. The principal of the hybrid system is the ability to continuously supply electricity during bad weather conditions or power outages.

Is a Hybrid Solar System Right for Me?

Are you planning to go for the hybrid solar system? It depends on your budget, geography, electricity needs, climatic conditions, space for installation, and grid conditions.

The benefits of a hybrid solar

Solar energy is a low cost  best option, continuing power supply during electricity outages and optimizing energy saving for homes with time-of-use prices. It works best in remote areas.

However, increasing energy prices can result in higher costs and potential space limitations.

Cost-Effectiveness

Most countries are focusing on solar energy for long-term and  cost savings. A hybrid system can secure low energy rates for years while protecting you from potential future price hikes. A hybrid system allows us to generate our own electricity, reduce dependence on the grid, and save money on our monthly electricity bills.

Flexibility and Scalability

In a hybrid system, people totally depend on electrical energy for daily life, but the system is designed to meet specific home needs. supply electricity in a more flexible and scalable economical way, system allowing for adding some extra panels and batteries as energy needs and price increase.

Environmental Sustainability

Solar panels are reducing their carbon footprint and gaining popularity as individuals. This system is best for those who wish to contribute to a greener and more sustainable environment.

Reduce the Risk of Outages

A hybrid system helps us in reducing the risk in load-shedding. Its benefits include ensuring a reliable electrical supply during grid failures due to technical errors or bad weather conditions. This system allows you to have electricity at your home when the grid does not continue to supply it.

Hybrid Solar Features

Electricity Production

A hybrid system continues power supply by capturing both solar and wind energy sources, making it environment friendly. PV cells generate the power when daylight energizes the electrons, creating a flow of power. This electricity is processed through the inverter by a network connection for efficient distribution and use.

Conversion

The hybrid inverters can convert energy power, such as Direct Current(DC) from a solar plate, into Alternating current (AC), making it for use in homes and businesses.

Storage of Electricity

All extra power generated from solar panels is stored in batteries until they reach full capacity. This stored energy can be used when solar production is low, ensuring the power supply.

Components of Hybrid System

Solar Panels

The Solar Panel is the main component in a hybrid system, it’s using Nano Fluids and an international journal of design and manufacturing technology, which captures sunlight and converts it to DC power.

Hybrid Inverter

This is a viable option and a key element in hybrid systems. It’s a really cool system that effectively manages battery charging while transferring critical load from the solar Panel.

Additionally, it converts DC electricity into AC electricity for home appliances.

Charge Controller

A hybrid charge controller manages the main supply of the inverter by charging the battery using power received from the Panel. The hybrid charger disconnects the main supply of the inverter during the day and automatically reconnects it at night, helping to reduce your electricity bill in the daytime.

Batteries

This system uses the batteries to store extra DC power which is generated by your plate during the day time. This enables it to provide power when the sun is setting, like at night or during bad weather conditions.

Grid Connection

Hybrid systems send unused or extra electricity to battery charging. When the battery is fully charged, the excess electricity is sent to the hybrid grid.

Net Metering System

Net metering is a billing method used by solar power systems. It allows homeowners to send extra energy back to the utility grid when their batteries are fully charged. This process credits the amount of energy against their utility bill, providing financial savings for solar users.

Pros and Cons of a Hybrid System

Discuss the advantages and disadvantages of hybrid solar systems. These are mentioned below.

Advantages of Hybrid Solars

There are numerous benefits of hybrid systems for homeowners and businesses. Let’s discuss it below.

Energy Storage:

System storing unused energy in batteries, homeowners rely less on grid stations. During the power outage the system automatically continues the supply.

Reduced Dependence on the Grid:

During the power outage, the system continued the supply from batteries, reducing dependence on the grid stations.

Disadvantages of Hybrid Solar Systems

  • Complex in installation
  • Battery LifeSpan
  • Maintenance Cost

What Makes Hybrid Solar Panels Different?

The working mechanism of hybrid systems and off-grid are the same , hybrid systems have some extra features, sending unused and extra energy to the grid.

Potential Drawbacks and Solutions

There are two main drawbacks to hybrid system, which are mentioned below.

Initial Cost

The cost of the hybrid system is too high due to its inclusion of batteries, but falling battery prices and government incentives make it affordable for everyone.

Maintenance and Lifespan

Batteries require regular maintenance and have a short lifespan. Advanced technology reduces maintenance requirements.

Conclusion

A hybrid solar system energy is an excellent solution for creating a self-sustainable lifestyle for you and your family. It provides different energy storage options, reduces dependency on the grid, enables the sale of extra electricity through net metering, and saves money on power bills.

It depends on your specific energy needs and geographic location.

Yes. It works without a grid connection

Yes, you run AC with the hybrid solar system.
